Portex Bivona FlexTend TTS Neonatal and Pediatric Tracheostomy Tubes

Portex Bivona FlexTend TTS Neonatal and Pediatric Tracheostomy Tubes

Why Select Portex Bivona FlexTend TTS Neonatal and Pediatric Tracheostomy Tubes?

Portex Bivona FlexTend TTS Tracheostomy Tubes are designed for neonatal and pediatric patients who require intermittent or temporary cuff use. A cuff, when inflated, helps create a seal between the tube’s outer wall and the trachea to direct airflow through the inner lumen, protecting against aspiration and optimizing respiration in ventilated patients and patients performing lung expansion therapies. When the seal is no longer needed, the cuff can be deflated, and it rests Tight-to-Shaft (TTS), reducing the risk of trauma to the trachea and allowing the patient to speak. ¹'²

Bivona FlexTend TTS Tracheostomy Tubes can be reprocessed up to five times and are made of soft, natural, biocompatible silicone that is intended to be gentle on sensitive body tissues.

A SuperSlick coating applied to the silicone surfaces aids in tube insertion, removal, cleaning, and reinsertion, most beneficial to patients, clinicians, and home care providers.

The extended-length proximal shaft keeps external devices and ventilator connections away from the child’s neck, providing a greater range of mobility which is intended to reduce the risk of stoma irritation.³

Wire embedded in the tubes’ shaft helps resist kinking, and a beveled, low-trauma tip provides added comfort and flexibility. The wire is nonferrous, producing less distortion in medical imaging than conventional wire. The nonferrous wire makes the Bivona Flextend TTS Tracheostomy Tube MR conditional with magnetic resonance imaging.

Common applications and treatment areas

  • Airway management
  • Extended tubes have been shown to help reduce tracheostomy-related pressure ulcers when used in conjunction with good clinical practice.¹
  • Mechanical ventilation
  • Weaning and phonation¹
  • Home care

Ordering Information

Box quantity: 1

Product Benefits

Portex Bivona FlexTend TTS Neonatal and Pediatric Tracheostomy Tubes are intended to reduce discomfort while helping to: ¹

  • Maintain airway patency
  • Aid weaning and speaking

Inquire about this product

Specifications / Ordering Information

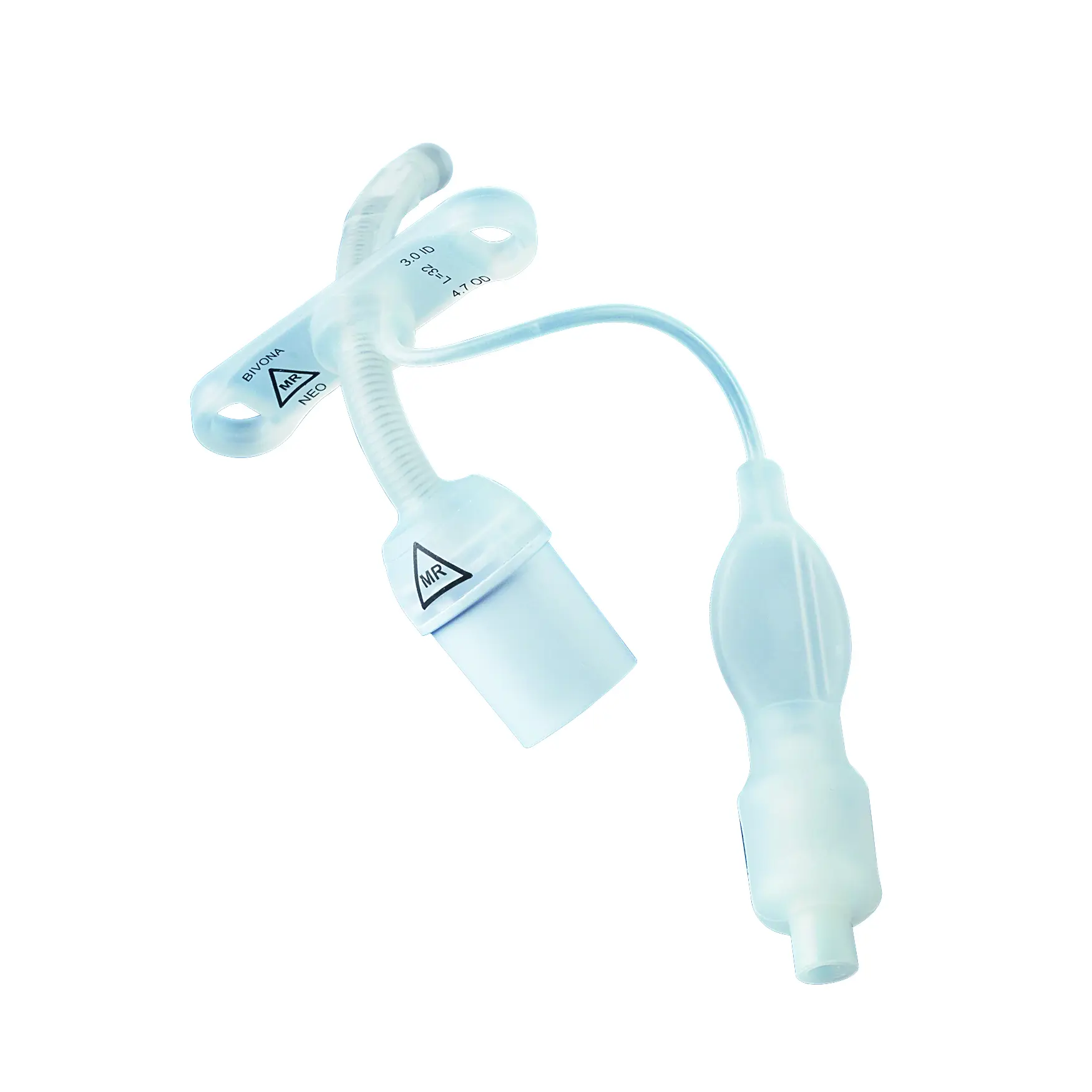

Bivona TTS Neonatal FlexTend Tracheostomy Tubes (Cuff Straight Neck Flange)

Reorder Code Tube Size (mm) Tube I.D. (mm) Tube O.D. (mm) Proximal Length (mm) Distal Length (mm) Tube Angle  Cuff Resting Diameter (mm) Units Per Case
67NFPS25 2.5 2.5 4.0 20 30 120° 4.0 1
67NFPS30 3.0 3.0 4.7 20 32 120° 4.7 1
67NFPS35 3.5 3.5 5.3 20 34 120° 5.3 1
67NFPS40 4.0 4.0 6.0 20 36 120° 6.0 1

Bivona TTS Neonatal FlexTend Tracheostomy Tubes (Cuff V Neck Flange)

Reorder Code Tube Size (mm) Tube I.D. (mm) Tube O.D. (mm) Proximal Length (mm) Distal Length (mm) Tube Angle Cuff Resting Diameter (mm) Units Per Case
67NFP25 2.5 2.5 4.0 20 30 120° 4.0 1
67NFP30 3.0 3.0 4.7 20 32 120° 4.7 1
67NFP35 3.5 3.5 5.3 20 34 120° 5.3 1
67NFP40 4.0 4.0 6.0 20 36 120° 6.0 1

Bivona TTS Pediatric FlexTend Tracheostomy Tubes (Cuff Straight Neck Flange)

Reorder Code Tube Size (mm) Tube I.D. (mm) Tube O.D. (mm) Proximal Length (mm) Distal Length (mm) Tube Angle Cuff Resting Diameter (mm) Units Per Case
67PFSS25 2.5 2.5 4.0 20 38 120° 4.0 1
67PFSS30 3.0 3.0 4.7 20 39 120° 4.7 1
67PFSS35 3.5 3.5 5.3 20 40 120° 5.3 1
67PFSS40 4.0 4.0 6.0 20 41 120° 6.0 1
67PFSS45 4.5 4.5 6.7 30 42 120° 6.7 1
67PFSS50 5.0 5.0 7.3 30 44 120° 7.3 1
67PFSS55 5.5 5.5 8.0 30 46 120° 8.0 1

Bivona TTS Pediatric FlexTend Tracheostomy Tubes (Cuff V Neck Flange)

Reorder Code Tube Size (mm) Tube I.D. (mm) Tube O.D. (mm) Proximal Length (mm) Distal Length (mm) Tube Angle Cuff Resting Diameter (mm) Units Per Case
67PFS25 2.5 2.5 4.0 20 38 120° 4.0 1
67PFS30 3.0 3.0 4.7 20 39 120° 4.7 1
67PFS35 3.5 3.5 5.3 20 40 120° 5.3 1
67PFS40 4.0 4.0 6.0 20 41 120° 6.0 1
67PFS45 4.5 4.5 6.7 30 42 120° 6.7 1
67PFS50 5.0 5.0 7.3 30 44 120° 7.3 1
67PFS55 5.5 5.5 8.0 30 46 120° 8.0 1

Bivona TTS Pediatric FlexTend Plus Tracheostomy Tubes (Cuff Straight Neck Flange)

Reorder Code Tube Size (mm) Tube I.D. (mm) Tube O.D. (mm) Proximal Length (mm) Distal Length (mm) Tube Angle Cuff Resting Diameter (mm) Units Per Case
67PFPS40 4.0 4.0 6.0 30 44 120° 4.0 1
67PFPS45 4.5 4.5 6.7 30 48 120° 4.7 1
67PFPS50 5.0 5.0 7.3 30 50 120° 5.3 1
67PFPS55 5.5 5.5 8.0 30 52 120° 6.0 1
67PFPS60 6.0 6.0 8.7 30 56 120° 6.7 1

Bivona TTS Pediatric FlexTend Plus Tracheostomy Tubes (Cuff V Neck Flange)

Reorder Code Tube Size (mm) Tube I.D. (mm) Tube O.D. (mm) Proximal Length (mm) Distal Length (mm) Tube Angle Cuff Resting Diameter (mm) Units Per Case
67PFP40 4.0 4.0 6.0 30 44 120° 4.0 1
67PFP45 4.5 4.5 6.7 30 48 120° 4.7 1
67PFP50 5.0 5.0 7.3 30 50 120° 5.3 1
67PFP55 5.5 5.5 8.0 30 52 120° 6.0 1
67PFP60 6.0 6.0 8.7 30 56 120° 6.7 1

Note

Individually packaged with obturator, disconnection wedge, and twill tape.

References

1. McCracken J, Leasa D. Trach tubes designed to maximize safety may increase risk to ventilated patients. Crit Care. 2010;14(6):1008. doi: 10.1186/cc9306. Epub 2010 Dec 8. PMID: 21144013; PMCID: PMC3220018.

2. Tracheducation. (2023, December 26). Home | Tracheostomy Education. Tracheostomy  Education. https://tracheostomyeducation.com/

3. Hess DR, Altobelli NP. Tracheostomy tubes. Respir Care. 2014 Jun;59(6):956-71; discussion 971-3. doi: 10.4187/respcare.02920. PMID: 24891201.
