Gripper

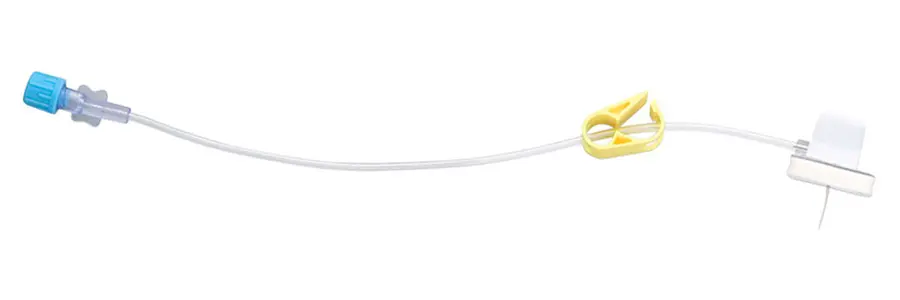

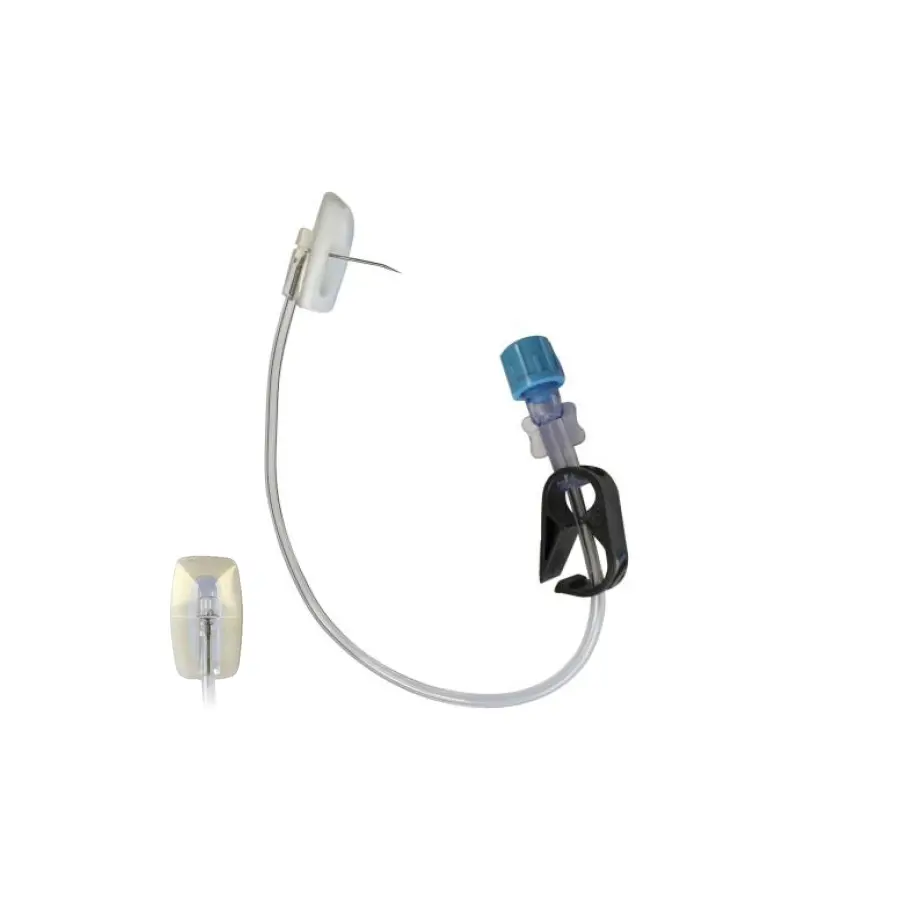

Gripper Port Access Needle

Non-Safety Huber Needle

Ordering Information

Box quantity: 12

Product Benefits

  • A non-safety port access needle to administer or withdraw fluids from implanted ports
  • Available in different sizes and lengths
  • Small footprint base with thick cushioned needle platform sits against the skin when in-situ
  • Removable contoured grip for easy insertion
  • Non-siliconized, non-coring needle
  • The 20 cm-long extension set is available with or without Y-site with removable injection cap on luer lock
  • Extension set with color-coded clamp(s)
  • Priming volume: 0.3 mL or 0.5 mL, depending on the extension set is with or without the Y-site
  • Pressure-rated up to 45 psi

Specifications / Ordering Information

Y-Site – Removable Injection Cap on Luer-Lock Y-Site

Product Code Gauge Length (in/mm)
21-2938-24 22 5/8 in / 16 mm
21-2939-24 22 3.4 in / 19 mm
21-2940-24 22 1 in / 25 mm
21-2941-24 22 1 1/4 in / 32 mm
21-2946-24 20 5/8 in / 16 mm
21-2947-24 20 3/4 in / 19 mm
21-2948-24 20 1 in / 25 mm
21-2949-24 20 1 1/4 in / 32 mm
21-2955-24 19 3/4 in / 19 mm
21-2956-24 19 1 in / 25 mm
21-2957-44 19 1 1/4 in / 32 mm

Without Y-Site

Product Code Gauge Length (in/mm)
21-2737-24 22 5/8 in / 16 mm
21-2733-24 22 3/4 in / 19 mm
21-2714-24 22 1 in / 25 mm
21-2715-24 22 1 1/4 in / 32 mm
21-2736-24 20 5/8 in / 16 mm
21-2734-24 20 3/4 in / 19 mm
21-2717-24 20 1 in / 25 mm
21-2718-24 20 1 1/4 in / 32 mm
21-2735-24 19 3/4 in / 19 mm
21-2720-24 19 1 in / 25 mm
21-2721-24 19 1 1/4 in / 32 mm
