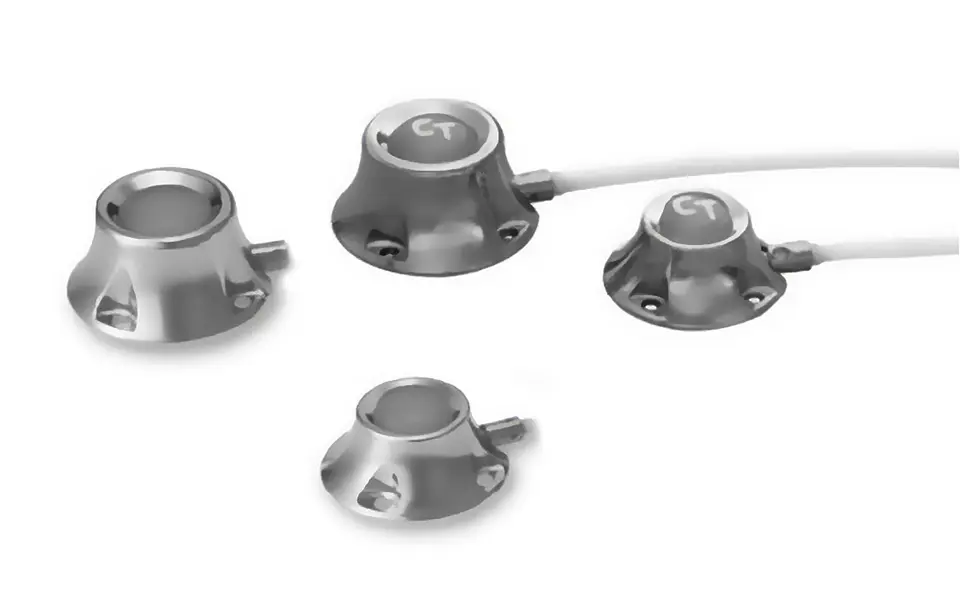

Port-A-Cath & Port-A-Cath Power Titanium Implantable Venous Access Systems

Designed to permit repeated access to the venous system for the parenteral delivery of medications, fluids, and nutritional solutions and for the sampling of venous blood.

Ordering Information

Box quantity: 1

Product Benefits
  • A titanium portal with round shape with beveled suture holes
  • Available as standard or low-profile
  • The Port-A-Cath Power for power injection of contrast media, the maximum recommended infusion rate is 5 mL/sec or up to 300 psi
    • A self-sealing silicone septum with “CT” embedded all through the septum for easy identification.
  • Accessible by percutaneous puncture with a non-coring needle at a 90° angle to the septum
  • Silicone septum puncture life with a 22 G (0,7 mm) Port-A-Cath access needle*
    • Standard port up to 2,000 punctures
    • Low-profile port up to 1,500 punctures
  • Radiopaque, polyurethane tapered catheter with clear markings
  • UltraLock Catheter Connector
  • MRI compatible up to 3 Tesla
  • Available as a kit (surgical placement technique) or a tray (percutaneous puncture technique)

Specifications / Ordering Information

Port-A-Cath Power P.A.C.

Titanium Contoured Portals with PolyFlow Polyurethane Catheters
Product Code Product Description Introducer Size Catheter Material OD (mm) ID (mm) Length (in)
21-4422-24 Kit
21-4423-24 Tray
Port-A-Cath, single-lumen 8.5 Fr Polyurethane 2.6 1.6 30
21-4424-24 Kit
21-4425-24 Tray
Port-A-Cath, single-lumen 6 Fr Polyurethane 1.9 1.0 30
21-4436-24 Kit
21-4437-24 Tray
Port-A-Cath, single-lumen, Low Profile 6 Fr Polyurethane 1.9 1.0 30

Port-A-Cath

Titanium Contoured Portals with PolyFlow Polyurethane Catheters
Product Code Product Description Introducer Size Catheter Material OD (mm) ID (mm) Length (in)
21-4024-24 Kit
21-4025-24 Tray
Port-A-Cath, single-lumen 6 Fr Polyurethane 1.9 1.0 30
21-4022-24 Kit
21-4023-24 Tray
Port-A-Cath, single-lumen 8.5 Fr Polyurethane 2.6 1.6 30
21-4036-24 Kit
21-4037-24 Tray
Port-A-Cath, single-lumen, Low Profile 6 Fr Polyurethane 1.9 1.0 30
Titanium Contoured Portals with Silicone Catheters
Product Code Product Description Introducer Size Catheter Material OD (mm) ID (mm) Length (in)
21-4008-24 Kit
21-4009-24 Tray
Port-A-Cath, single-lumen 9 Fr Silicone 2.8 1.0 30
21-4034-24 Kit
21-4035-24 Tray
Port-A-Cath, single-lumen, Low Profile 9 Fr Silicone 2.8 1.0 30
21-4000-24 Kit
21-4003-24 Tray
Port-A-Cath, single-lumen 9 Fr Silicone 2.8 1.0 30

Kits include: Portal, catheter, Port-A-Cath straight needle (except preassembled systems), vein pick, and Point-Lok device(s).

Trays include: Portal, catheter, Port-A-Cath straight needle, blunt needle (except preassembled systems), vein pick, 18G extra thin wall introducer needle, “J” guidewire(s), vessel dilator/sheath introducer assembly, 90° Port-A-Cath needle, Gripper Plus or Gripper Plus Safety needles, 2 syringes, tunneling tool and Point-Lok device(s).

All systems are unassembled, unless otherwise noted.
