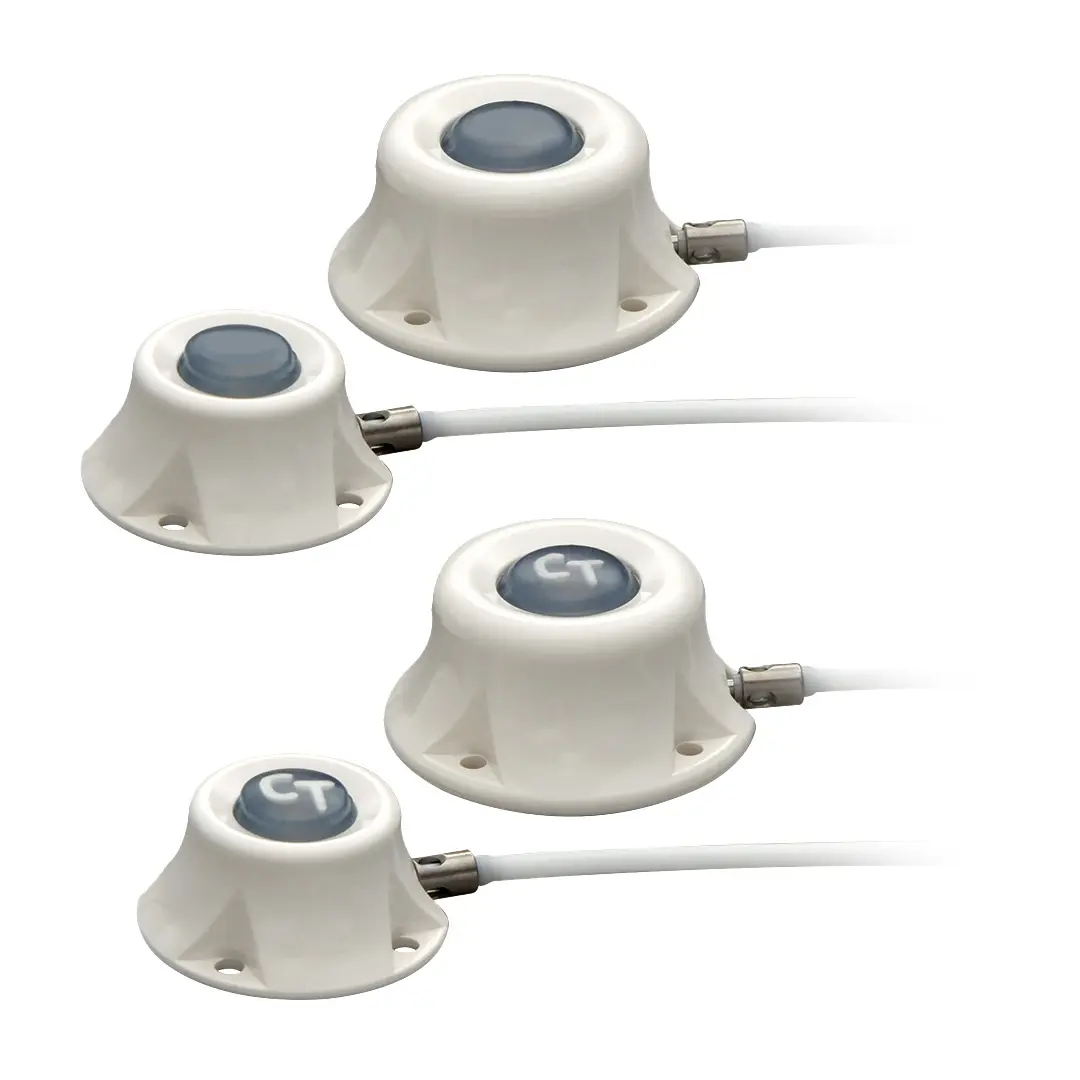

Port-A-Cath II Power & Port-A-Cath II P/T Implantable Venous Access Systems

Designed to permit repeated access to the venous system for the parenteral delivery of medications, fluids, and nutritional solutions and for the sampling of venous blood.

Ordering Information

Box quantity: 1

Product Benefits
  • A light-weighted polysulfone (external) and titanium (internal) low-profile portal with rounded shapes and beveled suture holes
  • Available as standard or low-profile
  • The Port-A-Cath II Power for power injection of contrast media, the maximum recommended infusion rate is 5 mL/sec or up to 300 psi
  • A self-sealing silicone septum with “CT” embedded all through the septum for easy identification.
  • Accessible by percutaneous puncture with a non-coring needle at a 90° angle to the septum
  • Silicone septum puncture life with a 22 G (0,7 mm) Port-A-Cath access needle
    • Standard port up to 2,000 punctures
    • Low-profile port up to 1,500 punctures
  • Radiopaque, polyurethane or silicone catheter
  • Cath-Shield Catheter Connector, or as preassembled
  • MRI compatible up to 3 Tesla
  • Available as a kit (surgical placement technique) or a tray (percutaneous puncture technique)

Specifications / Ordering Information

Port-A-Cath II Power P.A.C.

Port-A-Cath II Power P.A.C. Systems, Polysulfone/Titanium Portals with PolyFlow Polyurethane Catheters
Product Code Product Description Introducer Size Catheter Material OD (mm) ID (mm) Length (in)
21-4452-24 Kit
21-4453-24 Tray
Single-lumen Portal 6 Fr Polyurethane 1.9 1.0 30
21-4463-24 Tray Single-lumen Portal Preassembled 6 Fr Polyurethane 1.9 1.0 30
21-4454-24 Kit
21-4455-24 Tray
Single-lumen Portal 8.5 Fr Polyurethane 2.6 1.6 30
21-4465-24 Tray Single-lumen Portal Preassembled 8.5 Fr Polyurethane 2.6 1.6 30
21-4482-24 Kit
21-4483-24 Tray
Single-lumen Low Profile Portal 6 Fr Polyurethane 1.9 1.0 30
21-4485-24 Tray Single-lumen Low Profile Portal Preassembled 6 Fr Polyurethane 1.9 1.0 30
21-4470-24 Kit
21-4471-24 Tray
Single-lumen Low Profile Portal 8.5 Fr Polyurethane 2.6 1.6 30
21-4473-24 Tray Single-lumen Low Profile Portal Preassembled 8.5 Fr Polyurethane 2.6 1.6 30
Port-A-Cath II Power P.A.C. Systems with SafeSheath Valved Peel-Away Introducers
Product Code Product Description Introducer Size Catheter Material OD (mm) ID (mm) Length (in)
21-4474-24 Single-lumen Portal 8.5 Fr Polyurethane 2.6 1.6 30
21-4475-24 Single-lumen Low Profile Portal 8.5 Fr Polyurethane 2.6 1.6 30
21-4476-24 Single-lumen Portal 6 Fr Polyurethane 1.9 1.0 30
21-4477-24 Single-lumen Low Profile Portal 6 Fr Polyurethane 1.9 1.0 30

Port-A-Cath II

Port-A-Cath II P.A.C. Systems, Polysulfone/Titanium Portals with PolyFlow Polyurethane Catheters
Product Code Product Description Introducer Size Catheter Material OD (mm) ID (mm) Length (in)
21-4052-24 Kit
21-4053-24 Tray
Single-lumen Portal 6 Fr Polyurethane 1.9 1.0 30
21-4054-24 Kit
21-4055-24 Tray
Single-lumen Portal Preassembled 8.5 Fr Polyurethane 2.6 1.6 30
21-4063-24 Tray Single-lumen Portal Preassembled 6 Fr Polyurethane 1.9 1.0 30
21-4065-24 Tray Single-lumen Portal Preassembled 8.5 Fr Polyurethane 2.6 1.6 30
21-4082-24 Kit
21-4083-24 Tray
Single-lumen Low Profile Portal 6 Fr Polyurethane 1.9 1.0 30
21-4070-24 Kit
21-4071-24 Tray
Single-lumen Low Profile Portal 8.5 Fr Polyurethane 2.6 1.6 30
21-4084-24 Kit
21-4085-24 Tray
Single-lumen Low Profile Portal Preassembled 6 Fr Polyurethane 1.9 1.0 30
21-4073-24 Tray Single-lumen Low Profile Portal Preassembled 8.5 Fr Polyurethane 2.6 1.6 30
Port-A-Cath II Systems with SafeSheath Valved Peel-Away Introducers
Product Code Product Description Introducer Size Catheter Material OD (mm) ID (mm) Length (in)
21-4066-24 Single-lumen Portal 8.5 Fr Polyurethane 2.6 1.6 30
21-4067-24 Single-lumen Portal 6 Fr Polyurethane 1.9 1.0 30
21-4068-24 Single-lumen Low Profile Portal 8.5 Fr Polyurethane 2.6 1.6 30
21-4069-24 Single-lumen Low Profile Portal 6 Fr Polyurethane 1.9 1.0 30

Kits include: Portal, catheter, Port-A-Cath straight needle (except preassembled systems), vein pick, and Point-Lok device(s).

Trays include: Portal, catheter, Port-A-Cath straight needle, blunt needle (except preassembled systems), vein pick, 18G extra thin wall introducer needle, “J” guidewire(s), vessel dilator/sheath introducer assembly, 90° Port-A-Cath needle, Gripper Plus or Gripper Plus Safety needles, 2 syringes, tunneling tool and Point-Lok device(s).

All systems are unassembled, unless otherwise noted.
