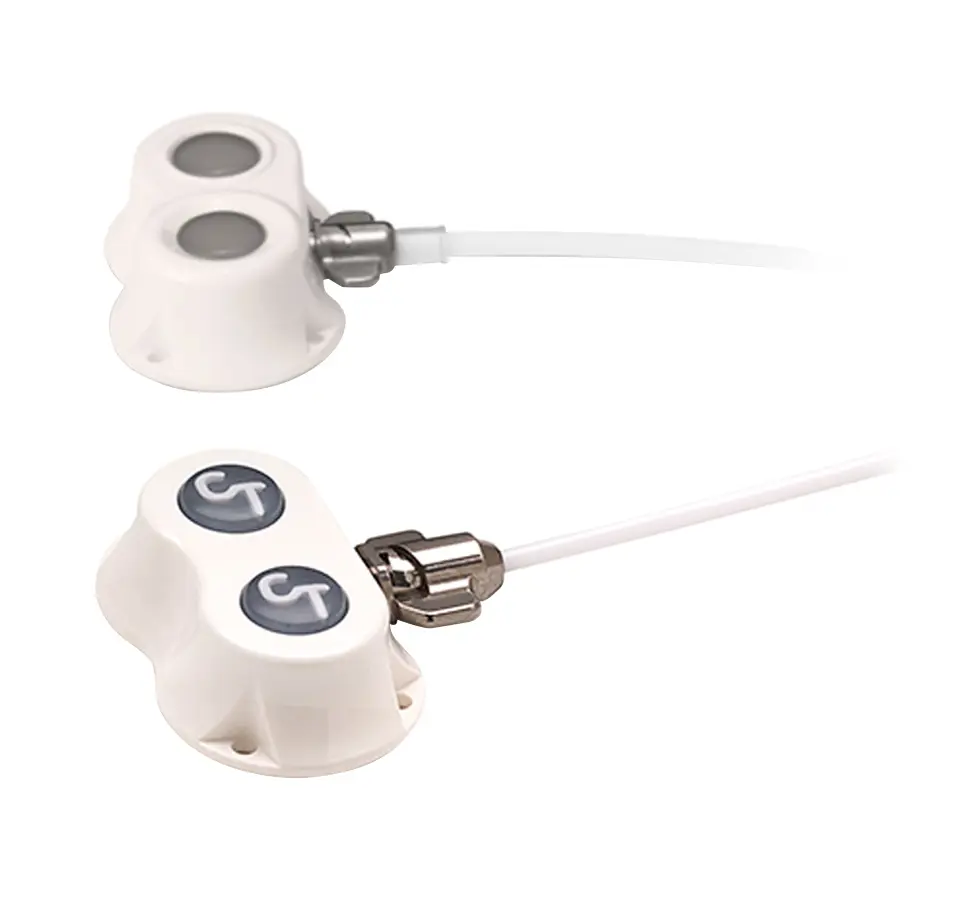

Port-A-Cath II & Port-A-Cath II Power Implantable Venous Access Systems – Dual Ports

Port-A-Cath II & Port-A-Cath II Power Implantable Venous Access Systems. Designed to permit repeated access to the venous system for the parenteral delivery of medications, fluids, and nutritional solutions and for the sampling of venous blood.

Ordering Information

Box quantity: 1

Product Benefits
  • A light-weighted polysulfone (external) and titanium (internal) low-profile portal with rounded shapes and beveled suture holes
  • Dual port having each two access points to a vein.
  • The dual Port-A-Cath II Power is for power injection of contrast media, the maximum recommended infusion rate is 5 mL/sec or up to 300 psi
  • A self-sealing silicone septum with “CT” embedded all through the septum for easy identification.
  • Accessible by percutaneous puncture with a non-coring needle at a 90° angle to the septum
  • Silicone septum puncture life with a 22 G (0,7 mm) Port-A-Cath access needle up to 1,500 punctures
  • Radiopaque, polyurethane tapered catheter with clear markings
  • Wing-Lock Catheter Connector
  • MRI compatible up to 3 Tesla
  • Available as a tray (percutaneous puncture technique) with a choice of a Non-Valved or Valved Peel-Away Introducer

Specifications / Ordering Information

Port-A-Cath II Power P.A.C. & Port-A-Cath II
Product Code Description Introducer Size Introducer Catheter Material OD (mm) ID (mm) Length (in)
21-8466-24 Port-A-Cath II Power PAC, dual Lumen 7F Non-Valved Peel-Away Polyurethane 2.2 1.0/1.0 30
21-8468-24 Port-A-Cath II Power PAC, dual Lumen 10F Non-Valved Peel-Away Polyurethane 3.2 1.4/1.4 30
21-8469-24 Port-A-Cath II Power PAC, dual Lumen 7F Valved Peel-Away Polyurethane 2.2 1.0/1.0 30
21-8470-24 Port-A-Cath II Power PAC, dual Lumen 10F Valved Peel-Away Polyurethane 3.2 1.4/1.4 30
21-8066-24 Port-A-Cath II, dual Lumen 7F Non-Valved Peel-Away Polyurethane 2.2 1.0/1.0 30
21-8068-24 Port-A-Cath II, dual Lumen 10F Non-Valved Peel-Away Polyurethane 3.2 1.4/1.4 30

Kits include: Portal, catheter, PORT-A-CATH straight needle, blunt needle, vein pick, and Point-Lok device.

Trays include: Portal, catheter, PORT-A-CATH straight needle, blunt needle (except preassembled systems), vein pick, 18G extra thin wall introducer needle, “J” guidewire(s), vessel dilator/sheath introducer assembly, 90° PORT-A-CATH needle, GRIPPER PLUS POWER P.A.C. or GRIPPER PLUS safety needle, 2 syringes, tunneling tool and Point-Lok device(s).

All systems are unassembled, unless otherwise noted.
