ICU Medical

CADD-Solis™

Infusion System

Modern portable design with wireless connectivity and versatility for pain management

Request More Information

A single infusion platform for pain management

Multiple delivery methods can be combined to meet your clinical practice
  • Continuous rate
  • Programmed Intermittent Bolus (PIB)
  • Patient Controlled Analgesia (PCA)
  • Patient Controlled Epidural Analgesia (PCEA)
  • Clinician bolus
Request More Information
  • IV PCA

    Intravenous pain management with continuous rate, PCA dose, clinician bolus, dosing with PCA dose key or remote dose cord

  • Epidural

    Epidural and subarachnoid administration in conjunction with Programmed Intermittent Bolus (PIB) and/or PCEA

  • Peripheral Nerve Block and Surgical Site Infusions

    Administration of peripheral nerve blocks and surgical site infusion with the ability to program PCA and/or Programmed Intermittent Bolus (PIB). Portable design supports patient ambulation

Standardize to a single wireless platform and differentiate therapies to support patient safety

  • Color-coded pump screens allow you to differentiate therapies
  • Ability to segment your fleet by grey or yellow pump face plates
  • CADD™ products with NRFit™ connectors help reduce the risk of misconnections

Smart pump features to support patient safety

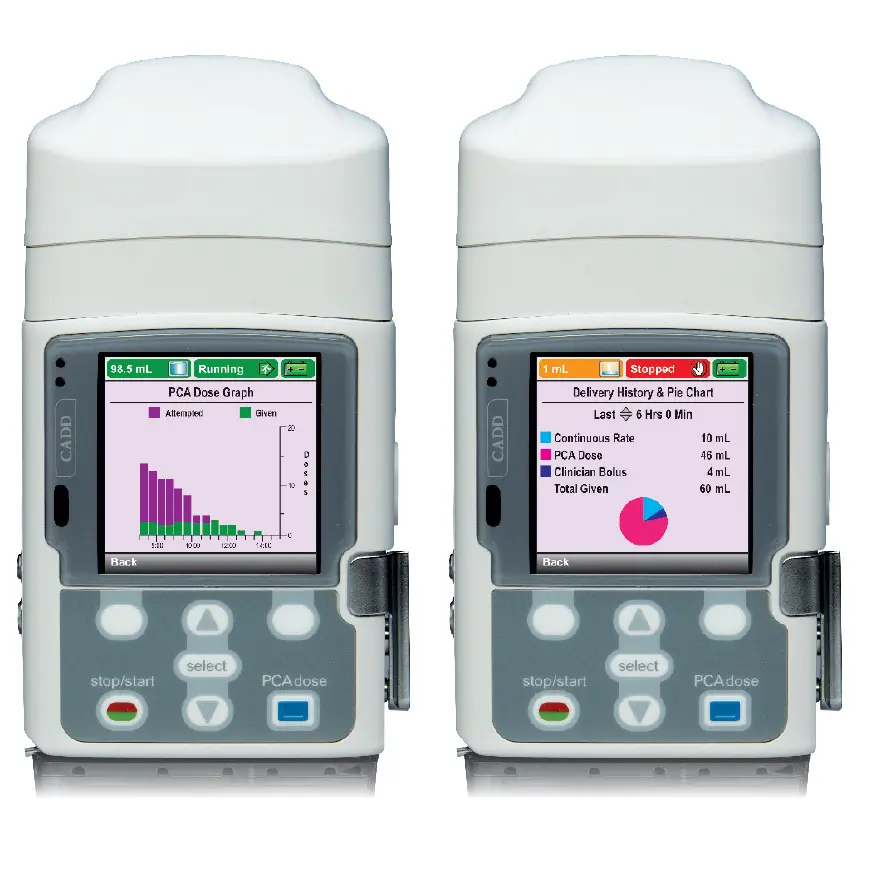

On-screen color graphs and trending data provide immediate patient assessment and help support the clinician at the bedside. The on-board library holds up to 500 protocols that can be edited within the safety limits for specific patient needs.

Additional PharmGuard™ software can help reduce programming errors with:

  • Soft and hard maximum and minimum programming limits
  • Tall man/Short man lettering
  • Support for full drug names
  • No trailing zeroes
Request More Information

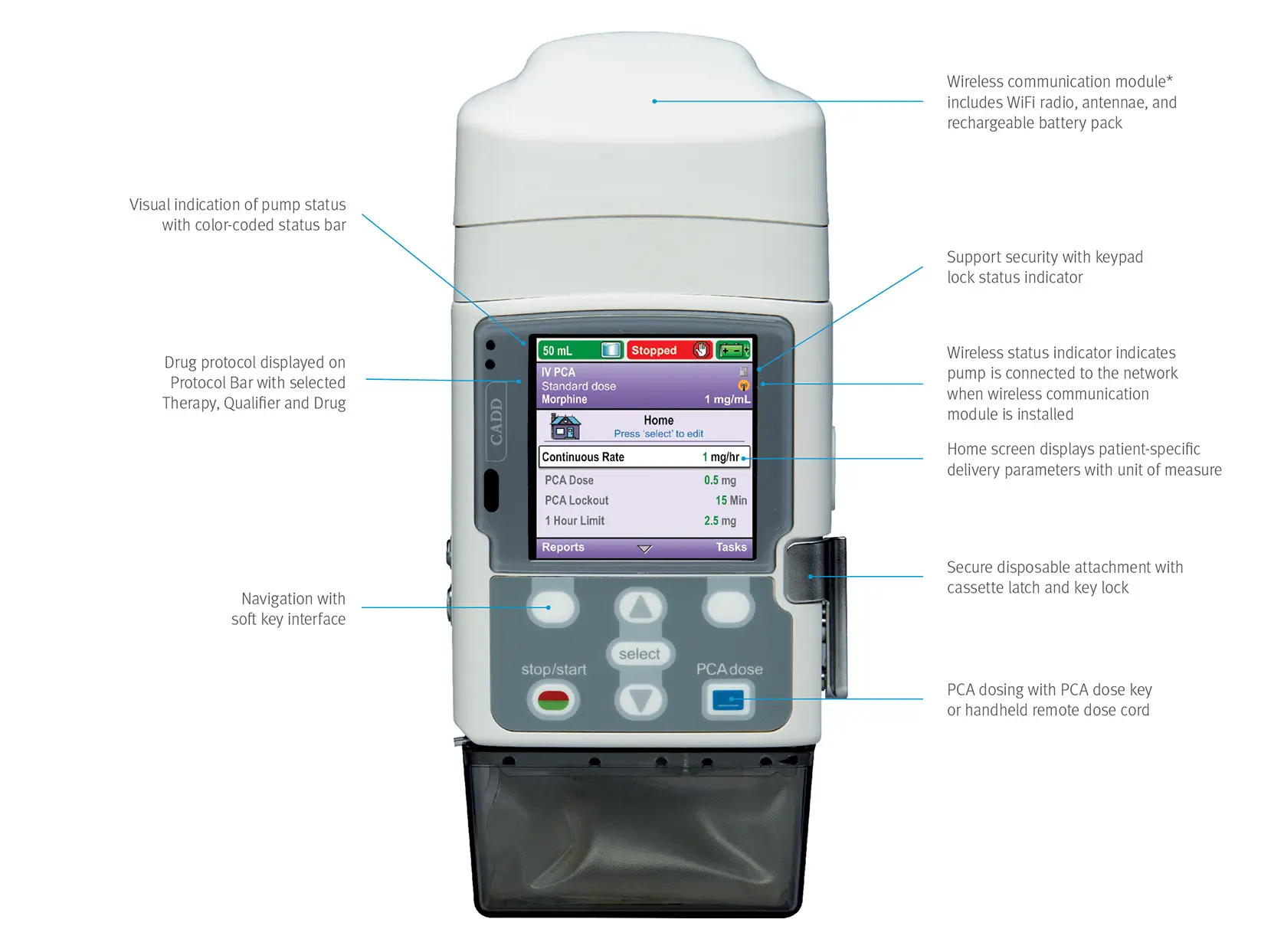

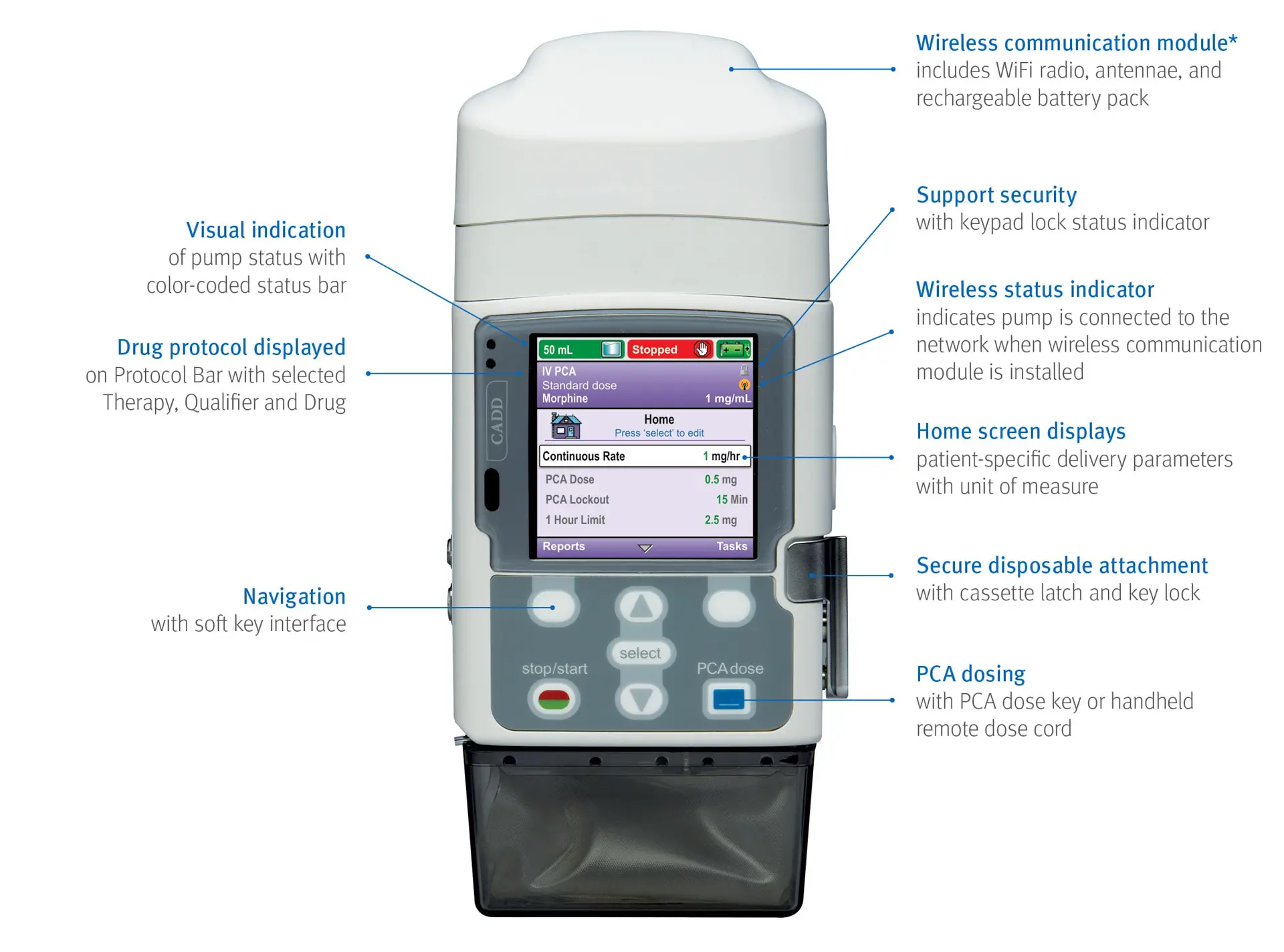

CADD-Solis Callouts

* The CADD-Solis Wireless Communication Module is an optional accessory that is available separately.

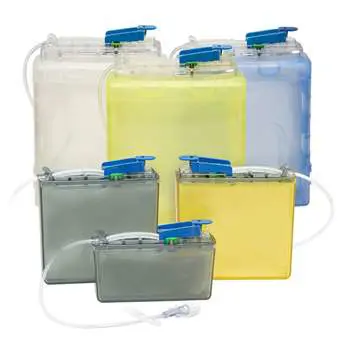

CADD medication cassette reservoirs

  • Durable, self-contained reservoirs lock directly onto the pumps, which helps to provide medication security
  • The pump and reservoir maintain a small footprint
  • Multiple sizes and color choices for therapy flexibility and visual identification
  • Flow stop feature helps prevent medication free-flow
  • Available with NRFit connectors to help reduce the risk of misconnections

Continuity of care with home use

  • Small ambulatory system supports patient mobility
  • Help screens can assist patients with troubleshooting and may reduce clinician visits
Request More Information

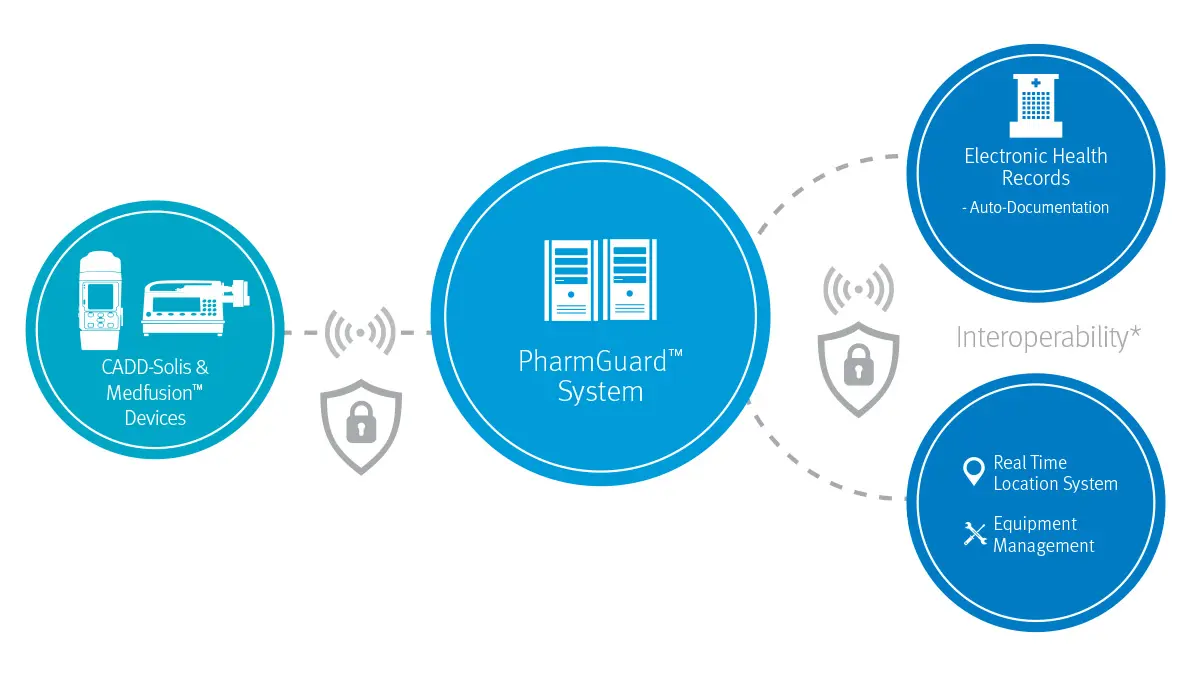

PharmGuard Infusion
Management System

Wireless Communication
Deploy medication libraries, update device firmware, and track device activity

Informed Decisions
Get insight into medication delivery and compliance, support patient safety, improve device utilization, leverage on demand reports across the whole pump fleet

Connect Smarter. Care Safer.™

A commitment to exceptional ongoing technical support and clinical education

Our commitment to you doesn’t end with the purchase. We provide a dedicated support organization with a wealth of knowledge, resources, and technical training opportunities to help you maximize the value of your investment in ICU Medical products.
When you choose ICU Medical, you are choosing a true partner who will be with you every step of the way, offering:

  • Best-in-class technical and clinical in-servicing
  • Dedicated field service engineers
  • Personalized instructional materials

Specifications

CADD-Solis Ambulatory Infusion Pump
Indications Intravenous, intra-arterial, subcutaneous, intraperitoneal, in close proximity to nerves, into an intraoperative site (soft tissue, body cavity/surgical wound site), epidural space, or subarachnoid space infusion. The pump is intended for therapies that require a continuous rate of infusion, and/or an intermittent bolus, and/or with patient-controlled demand doses, and/or clinician boluses.
Pump Size 1.6 in. x 4 in. x 5 in. excluding cassette or other accessories.
1.6 in. x 4 in. x 7 in. with CM attached
Screen Size 2.12 in. x 2.12 in. (320 pixels x 320 pixels)
Weight 21 oz. (595g) including 4 AA alkaline batteries, excluding other accessories.
On-board Protocol Library Stores up to 500 protocols
Security Cassette/keypad lock and three customizable security access levels: keypad code; clinician code; administrator code
Accuracy +/- 6% (nominal)
Delivery Methods Continuous rate; PCA dose; Clinician bolus; Intermittent Bolus
Reservoir Volume 0 to 9999 mL; programmable in 1 mL increments, displayed in 0.1 mL increments
Units Milliliters (mL), milligrams (mg), micrograms (mcg)
Wireless Communication Module Specifications
Battery Type Rechargeable Lithium-ion battery (2 cells)
Equivalent Lithium content <1.6 g
Battery Capacity 18.7 Wh (when fully charged)
Battery Output 3.6V (nominal)
Rechargeable Battery Weight <100 g
Product Battery Life 400 full cycles (charge / discharge) at room temperature, 23°C (73°F)
Battery discharge cycle of 11 hours at nominal condition
Maximum Charge Time (low battery to full charge) 10 hours when plugged into AC Adapter
Communication Module Wireless Range
36.5 meters (120 feet) line of sight operation with access point
802.11 a/b/g/n Network Configurations Supported
Network Mode Select the network mode to match the network:
802.11 a/b/g/n
802.11 b/g/n
802.11 a/n
Authentication Mode OPEN
WPA-ENT
WPA2-ENT
WPA-PSK
WPA2-PSK
EAP Mode EAP-TLS (v1.0 and v1.2)
EAP-TTLS
EAP-PEAPVO (PEAP with MS-CHAP v2)
EAP-PEAP v1 (PEAP with GTC)
EAP-LEAP
EAP-FAST
NOTE: EAP mode is not applicable for OPEN,
WPA-PSK, WPA2-PSK authentication mode
Encryption Mode The encryption mode for the network:
TKIP
CCMP
TKIP/CCMP
None
Wireless Encryption Key You can either enter a key consisting of 64 characters or a passphrase consisting of between 8 and 63 printable ASCII characters
NOTE: This field is not used with Enterprise authentication modes
Identity Enter your identity (if necessary)
Client Certification Client Certificate: Browse to select your client certificate file (in .pem format with maximum size of 8000 bytes)
Client Key: Browse to select your client key file (in .pem format with maximum size of 4000 bytes)
Private Key Password: Enter your private key password
Certificate of Authority: Browse to select your certification authority certificate file (in .pem format with maximum size of 8000 bytes)
Certificates SSL SHA-1
SSL SHA-2
