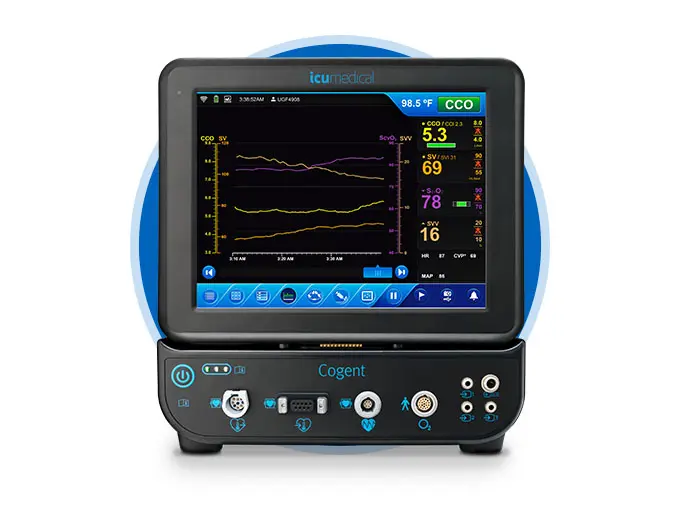

Cogent™ 2-in-1 Hemodynamic Monitoring System

The flexibility you’ve been asking for in a single, customizable monitor

Now you can monitor your patient's hemodynamic status based on their level of acuity, not on the technical limitations of your monitoring system.

Cogent 2-in-1 Hemodynamic Monitoring System accepts both minimally invasive and invasive inputs, letting you use a single monitor regardless of fluctuations in patient acuity and monitoring requirements.

Minimally Invasive Technologies

With Cogent, you can get hemodynamic and venous oximetry measurements delivered less invasively to help you manage a broader range of patients.

Continuous cardiac output (CCO), stroke volume (SV), stroke volume variation (SVV), pulse pressure variation (PPV), mean arterial pressure (MAP), and systemic vascular resistance (SVR) from the LiDCO^® monitor with PulseCo^™ algorithm and CardioFlo^™ sensor

Invasive Technologies

Our advanced sensor and oximetry catheters provide you with real-time access to your patient's hemodynamic status.

Cardiac output (CO), continuous cardiac output (CCO), stroke volume (SV), central venous pressure (CVP), right atrial pressure (RAP), pulmonary artery occlusion pressure (PAOP), and systemic vascular resistance from our line of pulmonary artery catheters (PAC) and central venous catheters (CVC)
Central venous oximetry (ScvO2 and SvO2) from TriOx^™-CVOC and TriOx-PAC catheters

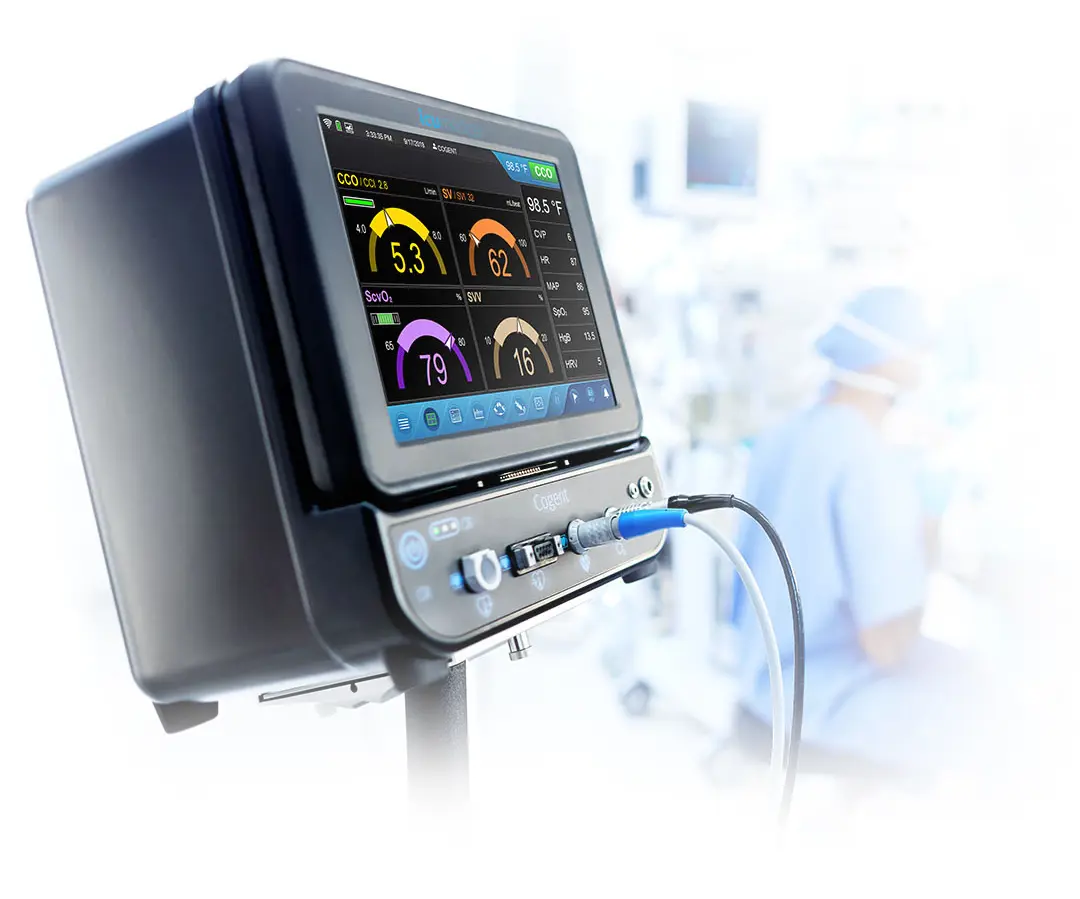

One monitor to learn, connect, and manage

One monitor and a consistent user interface for both minimally invasive and invasive measurements may reduce clinician training time and minimize user interpretation errors.

One monitor for minimally invasive and invasive measurements decreases the need for multiple monitoring platforms.

One monitor to connect for data transmission to patient bedside monitors and hospital's EMR via HL7.

The freedom to monitor patients where and how you choose

Handheld Display

Monitor patient status away from the bedside with Cogent’s detachable handheld display. Communicates wirelessly with base unit at a distance of up to 50 feet.
Pole-Mounted Options

Reduce clutter at the head of the bed by mounting the tablet on an IV pole for convenient viewing. Communicate to the base unit via wired or wireless connections.
Single Docked Unit

Bring everything together by docking the tablet and base as a single unit. Multiple mounting options include roll stand, IV pole, and swing arm mounts.

Customize the way you display patient data based on your specific clinical need

Trend Screen

Displays up to 4 primary color-coded measured parameters for 72 hours, including event markers for interventions and treatments.
Physiologic Screen

Integrates continuous updates of key measured parameters, giving a visual index of the hemodynamic status and the relationship between oxygenation, flow, and pressure throughout the hemodynamic circuit.
STAT Value Screen

Dynamically displays up to 3 primary parameters in numeric trend and updates every 10 seconds, allowing for rapid assessment of a patient’s response to treatment.
4-Parameter Dashboard

Displays up to 4 large color-coded primary parameters in a dashboard style with individual parameter gauges for viewing current measured value relative to alarm limits.

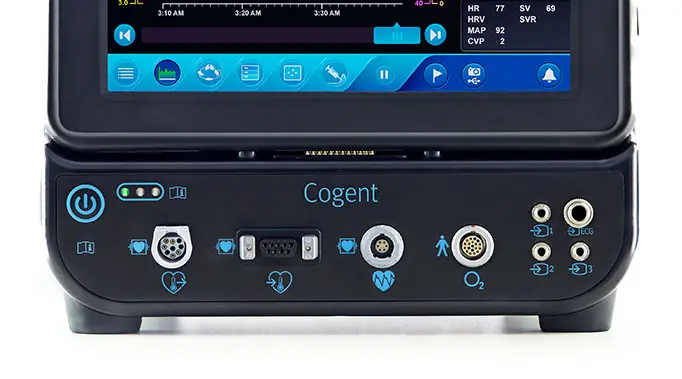

Cogent is compatible with the following proprietary catheters and sensors:

CardioFlo Minimally Invasive Cardiac Output Sensor

Measure CCO using the proven LiDCO monitor with PulseCO algorithm.

Pulmonary Artery Catheters

Measure CO intermittently and continuously as well as mixed SvO2.

Central Venous Oximetry Catheters

Measure ScvO2 and CVP continuously.

Product Details

Supporting Materials

Technical Video

℞ Only. For safe and proper use of this device, please refer to the appropriate manual.

LiDCO is a trademark of Masimo Corp.
PulseCo is a trademark of Masimo Corp.
