Transpac™ IV

Disposable Pressure Transducer

Providing real-time invasive blood pressure measurements you need to manage your critical care patients

Request More Information

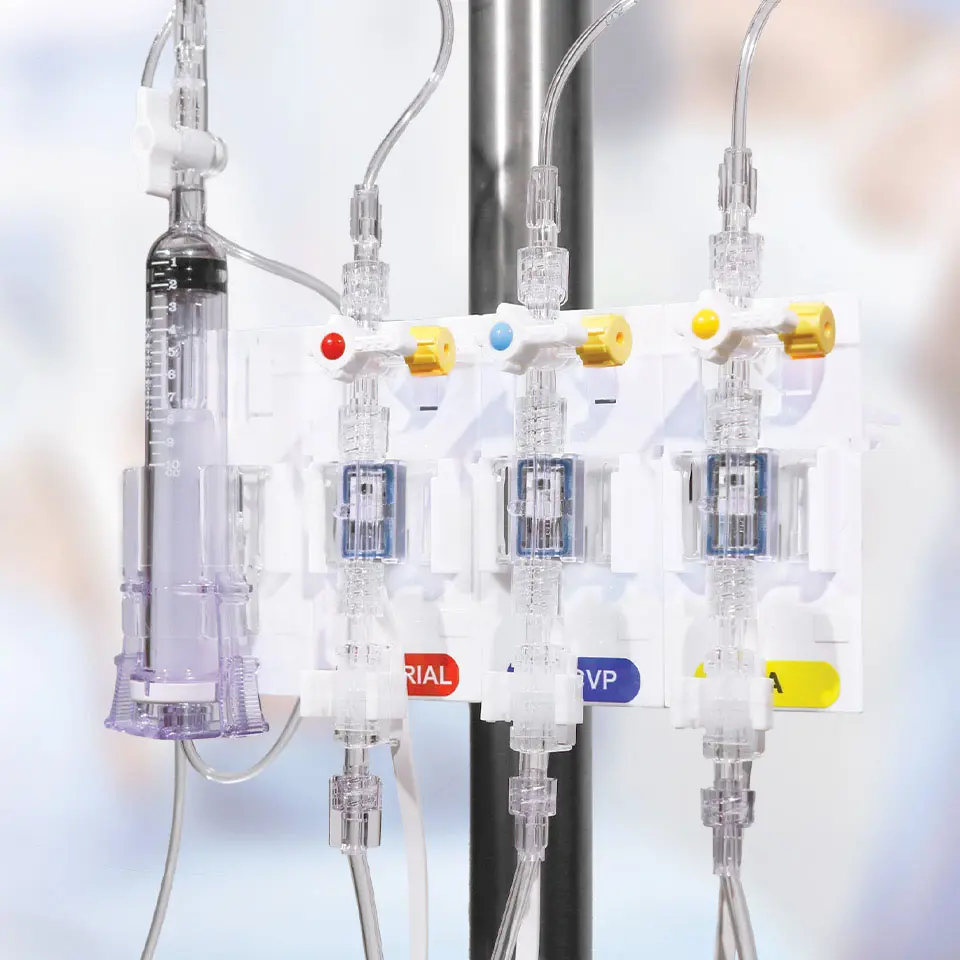

The Transpac IV pressure monitoring system provides you with over 30 years of technology in critical care settings and is available in multiple configurations for neonatal, pediatric, and adult patients.

Transpac IV Disposable Pressure Transducers provide clinicians with real-time access to their patient's hemodynamic and cardiovascular status in surgical and intensive care settings.

Benefits of Transpac IV

Available in multiple standard and custom configurations to meet your clinical needs

  • Kit options for both neonatal/pediatric patient population

  • Various single, double, triple, and quad line options

  • Available with SafeSet™ blood conservation system
  • Clear fluid pathway facilitates priming during setup

  • Optional color coded lines for easy identification

  • High durometer pressure tubing ensures optimal dynamic response
  • Two flush devices to choose from

    • 3 mL squeeze flush

    • 30 mL squeeze flush

Meets requirements for accuracy established by the Association for the Advancement of Medical Instrumentation (AAMI)

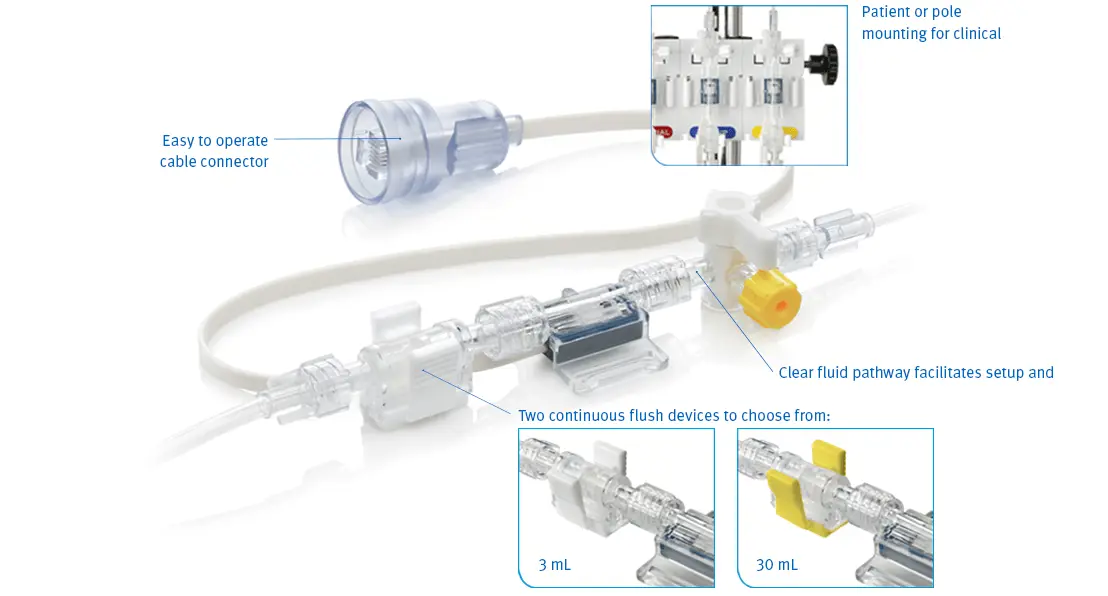

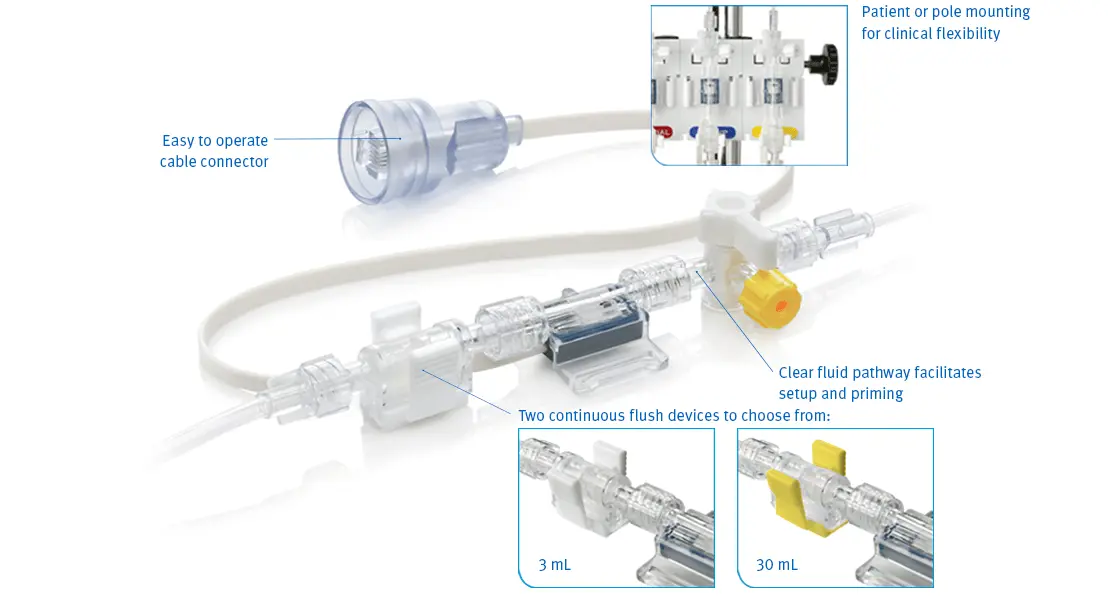

ICU Medicals Transpac iv How it works

Technical Specs

Operating Pressure:

-50 to 300 mm Hg

Overpressure Limits:

-400 to 5000 mm Hg

Sensitivity:

5 microvolt/volt/mm Hg ±1% @ 6 VDC and 22°C

Zero Offset:

< 25 mm Hg

Zero Drift:

< 2 mm Hg in 8 hours

Input Impedance:

300-350 ohms

Output Impedance:

300 ohms Nomina

Product Information

  1. Slide the transducer into the mounting bracket.
  2. Connect the cable extension of the Transpac IV transducer to the reusable cable. Connect the other end of the reusable cable to the patient monitor.
  3. Ensure that all luer connections are tightened.
  4. Connect the administration set to the fluid source. Gravity prime recommended.
  5. Activate the flush device by pulling the INTRAFLO pigtail or by compressing the tags of the squeeze flush device. Flush until fluid exits the side port of the zeroing stopcock.
  6. Turn the zeroing stopcock handle "off" to the zeroing port. Cover with a yellow non-vented cap.
  7. Activate the flush device to flush the remaining patient line. If additional stopcocks are in line, ensure that fluid exits each side port.
  8. Verify that all stopcock handles are turned "off" to the side ports and that side ports are covered by yellow non-vented caps. Pressurize the IV fluid source to 300 mm Hg. Close the pressure cuff clamp.
  1. Position the pole mount so that the zeroing port is level with the patient's phlebostatic axis.
  2. Turn the handle of the zeroing stopcock "off" to the patient. Remove the yellow non-vented cap from the zeroing port. Zero balance and calibrate per the monitor manufacturer's instructions. When completed, turn the zeroing stopcock handle "off" to the zeroing port. Cover the zeroing port with a yellow non-vented cap.
  3. Connect the fluid-filled patient line to the patient catheter.
